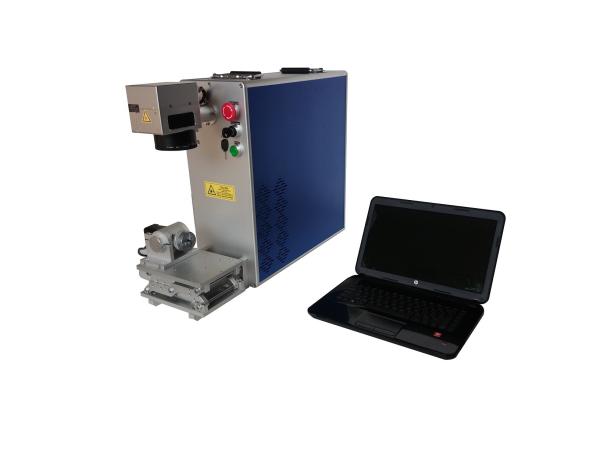

    Aluminium 50W metal deep laser engraving machine Air cooling ISO9001

    Ask Lasest Price
    Brand Name : Suntop Laser
    Model Number : ST-FL50-AMDL
    Certification : CE & ISO9001
    Price : USD16520-USD22150
    Payment Terms : T/T, Western Union
    Supply Ability : 250 sets / year
    Delivery Time : 18 work days
    • Product Details
    • Company Profile

    Aluminium 50W metal deep laser engraving machine Air cooling ISO9001



    Aluminium fiber laser marking machine with power 50W/metal deep laser engraving machine


    1. Machine General characteristics:


    Machine's optical parts special for Aluminium, brass and metals materials fast speed and high precision laser marking and engraving.


    Machine designed main for the barcode marking, data matrix marking, Series number marking, technical data sheet marking and anti-fake code marking etc...


    This machine designed with smart and compact size, esay to use and to move, save space, this machine with flexible application and easy to operate.


    Machine no daily maintenance , no consumable parts and long lifetime, machine using common air-cooling system. Fiber output, suitable for black marking.


    Machine equipped with laser beam isolation device from which can extend the laser lifetime and can acheive the deep engrave the high reflective materials, like the AL and brass ,copper etc...



    The Advantages of our desktop Aluminium fiber laser deep marking machine:


    1) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect, superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.


    2) Machine no maintenance, deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect,Machine with strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc...machine integrated Air Cooling System, the cooling effect is more excellent than the water cooling effect in YAG laser.


    3) Easy software operation, strong functions,high-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid, long lifespan of Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs).


    4) The fiber laser beam comes out from the fiber device directly, no need to adjust the laser optical path,low consumption: <500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental,original JCZ controller, USB interface, swift and stable transmission.


    5) Machine no Consumables: One Fiber marker can work for more than 10 years without any consumables, high Speed: 7000mm / second, is 3 to 5 times above that of traditional products.



    2. Applications industries:

    This kinds of desktop small size fiber laser marking has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy. It is widely used in: advertising industry, arts industry, electronic components industry, medical device industry, glasses watch and clock industry, IC card industry, plastic tool industry, kitchen and bathroom appliance, etc.


    3. Desktop fiber laser marking machine main technical parameters :


    MODELST-FL10ST-FL20ST-FL30ST-FL50
    Laser power10W20W30W50W
    Length of laser weave1064nm1064nm1064nm1064nm
    Marking scope110x110~ 250x250110x110~ 250x250110x110~ 250x250110x110~ 250x250
    Mark depth0.3mm0.4mm0.6mm1.0mm
    Marker speed≤15000mm/s≤15000mm/s≤15000mm/s≤15000mm/s
    Min line width0.05mm0.05mm0.05mm0.05mm
    min character0.15 mm0.15 mm0.15 mm0.15 mm
    Repeat precision±0.002mm±0.002mm±0.002mm±0.002mm
    Gross power0.4KW0.5KW0.6KW1KW
    Power supply220V(±10%)/50Hz/ 3A220V(±10%)/50Hz/ 3A220V(±10%)/50Hz/ 3A220V(±10%)/50Hz/ 3A
    Operating temperature10-35°C10-35°C10-35°C10-35°C


    PS: the laser power 10W and 20W just for simple shallow marking and engraving, 30W and 50W for depth marking



    4, Machine application materials:

    17-4 PH stainless steelMagnesium
    303 stainlessMetal-plated ceramics
    4043 steelMolybdenum
    6061 AluminumNickel plated 1215 mild steel
    ABS (white/black)Nickel plated brass
    Aluminum, 6061Nickel plated gold
    Aluminum, yellow chromateNickel plated Kovar
    Bayer 2807 Makrolon polycarbonateNickel plated steel
    Bayers bayblend FR110Nylon
    Black/white ABSPEEK, white
    BrassPolybutylene Terephthalate
    Black/white polycarbonatePolycarbonate (black/white)
    Brushed aluminumPolycarbonate resin 121-R, GE Plastics
    Carbon fiberPolycarbonate, Bayer 2807 Makrolon
    Carbon nanotubePolysulphone
    Ceramics, metal-platedRynite PET
    Clear coat anodized aluminumSantoprene
    Cobalt chrome steelSilicon carbide
    Colored delrin (black/brown)Silicon steel
    Compacted powder iron with phosphate coatingSilicon wafers
    CopperStainless steel 303
    DAP - Diallyl PhthalateStainless steel 17-4 PH
    Delrin, colored (black/brown)Steel 4043
    GE Plastics polycarbonate resin 121-RSteel, machine tool
    Glass filled PEEKVarious inconel metals (nickel-chromium super alloys)
    Glass filed TeflonWhite PEEK
    Hard coat anodized aluminumYellow chromate aluminum
    Inconel metals (various)Zinc plated mild steel
    Machine tool steelAnd Many More

    5, Our fiber laser marker main advantages:

    5.1. Our machine's fiber laser source adopt the Germany IPG or China's top quality Raycus famous brand, other key optic parts we adopt the famous brand wo ensure the machine with exporting standard ( A top quality ) .

    5.2. We can customized the laser marking machine as per customer's requirements, for example to design the special fixtures, the automation system and the corresponding matching services.

    5.3. Have the professional QC team for machine quality controal, we need at least 3 days to test the machine's stability before machine shipping out,

    5.4. Recommend the machine as per customer's exact needs with the concept of Economic and practical.

    5.5. We not only provide the machine itself, but also provide the professional laser solutions at customer end.

    5.6. After sale team response customer's problems within 12 hours for oversea market, So buy our laser machines without any future worries .

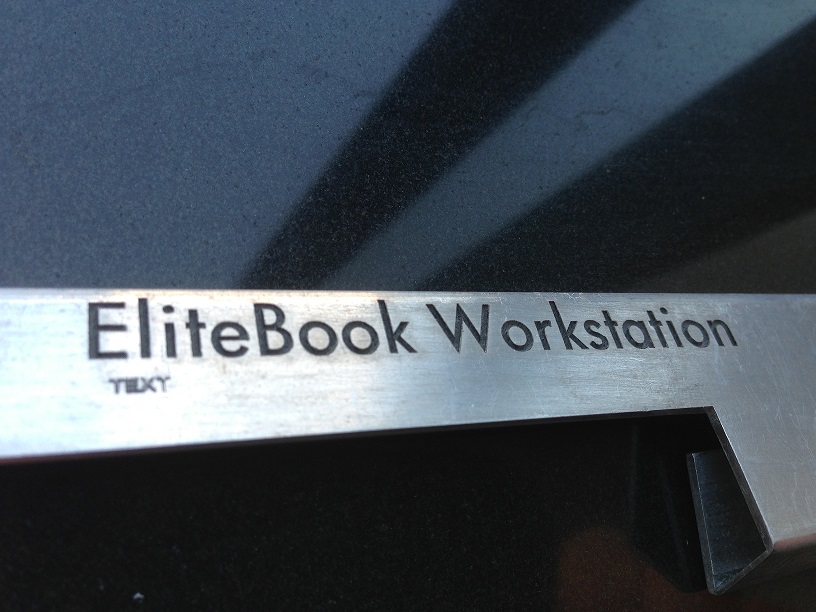

    6. The real laser marking samples for reference as follows:



    Welcome to contact us for more informations about laser marking machines, we can customized different kinds of laser marking system depend on customer's actual requirements.
