    Stainless Steel Fiber Laser Cutting Machine With Laser Power 500 Watt

    Ask Lasest Price
    Brand Name : Suntop laser
    Model Number : QY- FC2513
    Certification : CE & ISO9001
    Price : USD81500-USD88540/set
    Payment Terms : T/T or Western union
    Supply Ability : 1500 sets/year
    Delivery Time : 20-30 working days after receive the down payment
    • Product Details
    • Company Profile

    Stainless Steel Fiber Laser Cutting Machine With Laser Power 500 Watt


    Stainless steel fiber laser cutting machine with laser power 500 watt


    Description


    Machine has the home-grown Automatic tracking system, anti-collision design, automatically adjust the best focus, the best machine frame structure adopts box-structure, plate welding structure, with outstanding advantage of year-round using with no deformation, the machine adopts the world’s top quality fiber laser source and patent technology, stable performance, the lifetime of the key parts could reach 100,000 hours, fiber transmission and high electro- optical conversion rate , no need the reflect lens, save much future maintenance cost .

    Machine use the fiber transmission, flexible processes, suitable for stainless steel, carbon steel and other materials, X, Y, Z axes are imported from Japan servo motor, high-precision, high- speed, high-torque, high inertia, stable performance and durable. Ensure the machine's high speed and acceleration, top high end performance achieved to realize ultra-high precision processing requirements, automatic following system, China top viability, can realize a calibration, automatic following.


    Imported high - precision electronic control proportional valve, precise control of the cutting auxiliary gas pressure, in order to achieve the best cutting results , the machine uses a moving gantry structure, imported high-precision screw and linear guide, smooth transmission, high precision, the machine bed sheets use welded structure and the beam used the whole casting, aluminum structure, which have a constant in highlighing the advantages of using without distortion, free running speed: null shift speed can be up to 60m/min.


    Performantion in advanced mode, the plate quickly punch cutting, cutting time saved, leading the cutting process, which can meet all kinds of shapes precise cutting, such as: 4mm thick carbon steel can be achieved 2mm diameter hole cutting, very fast cutting speed, 1mm stainless steel the Max. cutting speed is 10 meters/Min .


    Aplication materials


    Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.



    Applicable Industry


    It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.


    SPECIFICATIONS


    No

    Performance index parameter

    1

    Cutting area( length×width)

    2500mm×1300mm ( 1500*3000mm can be optional )

    2

    X axis route

    2500mm

    3

    Y axis route

    1300mm

    4

    Z axis route

    120mm

    5

    X/Y axis positioning accuracy

    0.05mm/m

    6

    X/Y axis positioning accuracy

    +0.04mm

    7

    Maximum speed

    70m/min

    8

    Maximum cutting thickness

    ≤8 mm ( exact value depend on the actual metal materials )

    9

    Number of phase

    3

    10

    Power rated voltage

    380V

    11

    Frequency

    50Hz

    12

    Total power protection grade

    IP54

    13

    Repeat positioning accuracy

    ± 0.1mm

    14

    Min. line width

    0.15mm

    15

    Max. cutting speed

    60m/Min


    Competitive Advantage:


    1, our 500W sheet metal fiber laser cutting machine with european quality but China price, because the main optic parts are imported from Germany or USA .

    2, our machine tools are processed by high temperature casting and welded which almost no deformation after 3-5 years.

    3, we main for exporting, we have our professional after sales service team.

    4, we have our own core patent technology, so our machine with high quality cost performance.

    5, we do after sale service for oversea market within 12 hours and provide the free future programe and software upgrade.

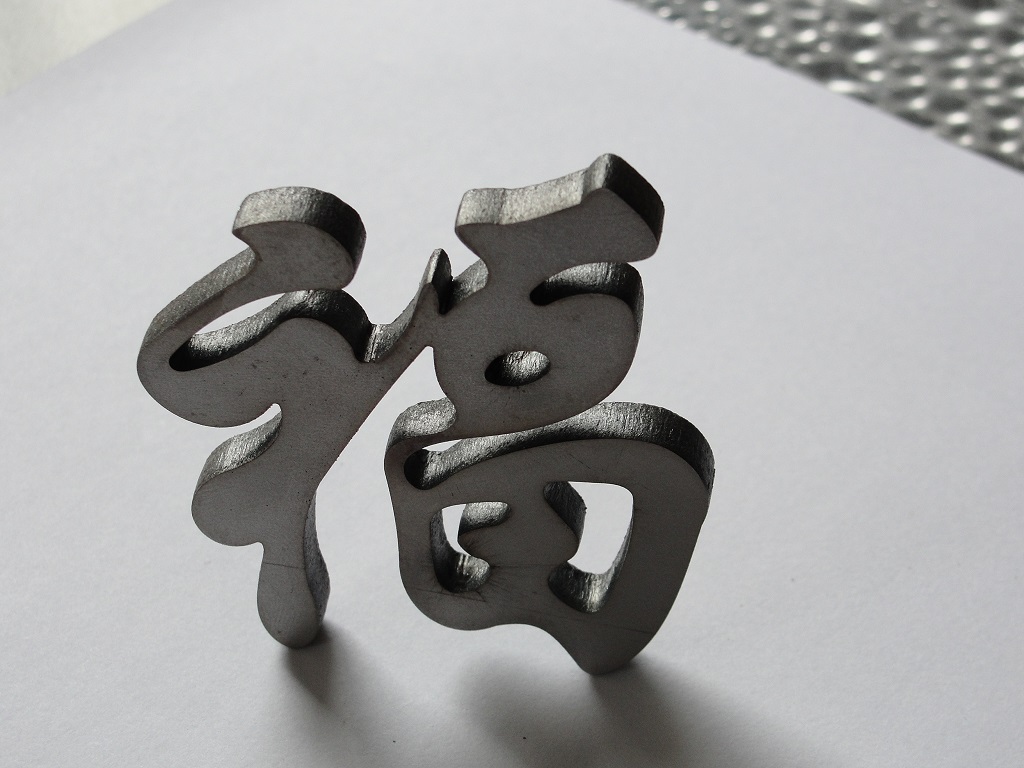

    The cutting samples photos as follows:



    Quality Stainless Steel Fiber Laser Cutting Machine With Laser Power 500 Watt for sale
