    3W Large 3D Laser Engraver 4000HZ for Metal, Hard Plastic

    Ask Lasest Price
    Brand Name : Suntop
    Model Number : ST-HSGP-4K
    Certification : CE & ISO 9001
    Price : USD58750 - USD61250
    Payment Terms : T/T, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    3W Large 3D Laser Engraver 4000HZ for Metal, Hard Plastic

    3W Large 3D Laser Engraver 4000HZ for Metal, Hard Plastic

    1, Machine features

    Our this kinds of big engraving size crystal and glass laser inner engraving machine suitable for large size photo engraving, it's suitable for decoration glass 3d or 2D laser inner engraving also , it with the refined engraving images and letter both on the surface and inside, it main for 3D crystald and 3D glass for mass production engraving decorations.

    The crystal laser engraving machine is a high resolution model and adopt the Gantry design which can engrave the big crystal and glass with high precision and fast speed,


    This machine is really a fine processing machine with advantages of high fidelity and high stability .


    Our patent Image mosaic technology which is the top in the market .


    2, Machine Application fields

    Crystal shop , traveling place , advertising company , school, home business , glass producing


    3, The application materials

    Crystal , glass , metal , plastic ,etc


    4, Our 3D crystal laser inner engraving machine's advantages

    4.1. Fast speed,high resolution engraving effect
    4.2. Large size engraving area,the max can cutomized :2500*1300*80mm
    4.3. Few consumable,Maintenance-free,low cost and convenient operate
    4.4 2 year warranty for whole machine
    4.5. Door to door install and training free.
    4.6. The new technology lead the market all over the world.

    4.7. Our laser source imported from Germany, and the Q-switch imported from U.K , the machine's Galvanometer (laser head) imported from Germany also, so the whole machine is the Top A quality.


    5, Our special extra services as follows:

    5.1. 2 years guarantee period for product quality. (Man-made damaged is except ).
    5.2. Engineer can fly to foreign country to provide one time door to door training and installation .
    5.3. Lifelong maintenance and spare parts supply.
    5.4. Free design of fixtures as customers required.
    5.5. We provide 24 hours after serves serives for oversea customers.


    6, Machine's technical specifications


    Style No.

    ST-HSGP-4K

    Laser pumping

    Semiconductor diode

    Laser wavelength

    532nm

    Laser frequency

    4kHZ ( 4000HZ )

    Maximum pulse energy

    1.2mj

    Laser power

    3w

    Q-mode

    Acousto-optic-Q

    Pulse width

    7ns

    Beam quality

    m2<1.5

    Maximum engrave speed points

    260000dots/minutes to 300000 dots/minutes

    Maximum marking scope

    1200*800*80mm

    Laser head

    one

    Resolution

    800DPI -1200DPI

    Focal length

    100mm

    Focus diameter

    0.02mm

    Cooling

    air cooling

    Application materials

    crystal .glass, metal, hard plastic etc

    Device input power

    AC220V±10% 50-60Hz



    7, The working flow of the crystal laser engraving machine as follows

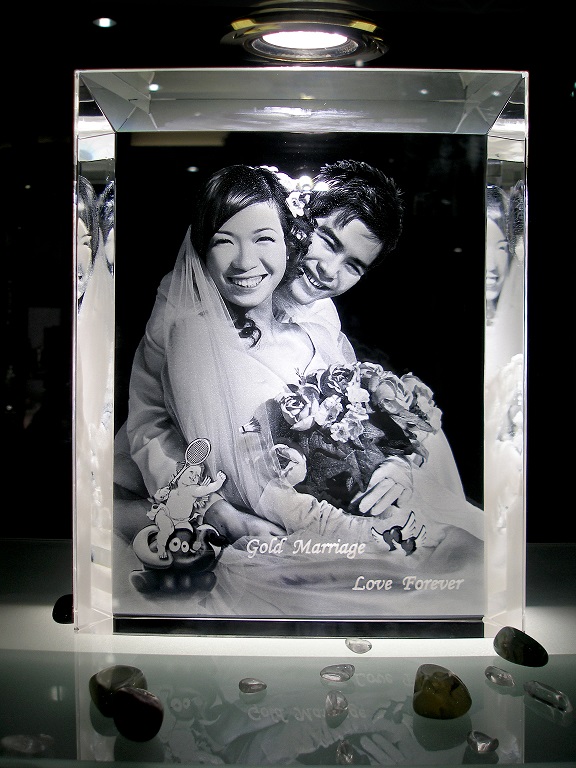

    8, The crystal laser inner engraving machine's application photos:
