Yag Pulse Fiber Laser Welding Machine For Metal Products , 500W Three Phase

1, Machine main features

1.1. Xenon lamp pumped, fiber-coupled output light source, uses the energy feedback system or current feedback system, high stability, good beam quality, the welding spot is beautiful and good consistency.

1.2. Machine optic system use the fiber transmission instead of the mirrors reflect which has low future failure rate and high electro-optic conversation, flexible transmission, welding head, small volume, convenient online integration.

1.3. Easy to integrate all kinds of work stations and motion platform, accomplish the complex welding, welding requirements of high precision.

1.4. Pulse width: to reach the set range of 50ms, to achieve more ideal welding quality;

1.5. Pulse frequency: reach the set range of 300Hz, achieve high precision, high speed welding

1.6. Welding quality: slow rise and slow drop function, make the seam the beginning and end of the overlapping part is greatly improved;

1.7. Optical fiber transmission: by the energy of light or time points of light, to achieve the same time, welding or sub - welding, up to 4 of the road, increasing the degree of freedom, improve production efficiency;

1.8. Rich I/O interface, can be used for a variety of external auxiliary equipment joint operation;

1.9. The main components of the selection of high quality imported components, to ensure the reliability of the product;

2.0. Remote control, can be equipped with industrial robots, high precision positioning, easy to achieve automation.


2, Machine's application fields

Widely used in the cell phone battery metal shells, advertisement industry, glass frame welding, stainless steel frame welding, the keyboard welding, silicon steel welding and stainless steel at welding, furniture and vacuum ,cup, bowl, the door - handle and the spark plugs, filter, grease, a heating tube, support metal tube etc.


3, Machine's application materials

The same steel, plain carbon steel, alloy steel,iron, stainless steel, low carbon steel, steel -310 316 stainless steel, alloy steel and 347 nickel, different levels of nickel, titanium, nickel, tin, copper, aluminium, niobium, gold, silver of metal or alloy the same metal for the welding. copper and nickel, titanium, copper and nickel, titanium, titanium, molybdenum, brass, copper, and low carbon steel, copper, metal for the welding.


4, Machine main technical parameters

5, The laser welding working table specifications:

This kinds of welding working table uses the marble table, cross X and y motion platform, equipped with a variety of welding fixtures plane movement, laser welding head can move and linkage with cross platform , machine adopts coaxial CCD programming system, it can match all kinds rotary chuck, electric turntable can have the completion of four axis linkage system space arbitrary trajectory welding, with the characteristics of high precision, fast speed, good welding quality and stability, etc..

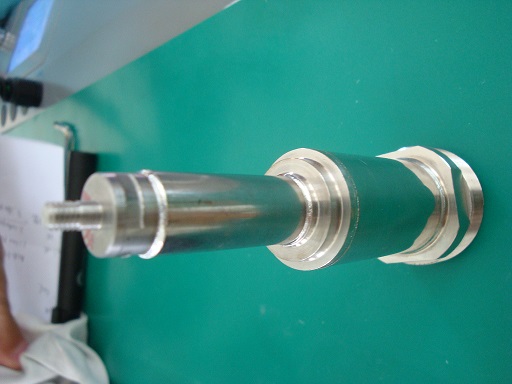

6, The laser welding samples photo

Suntop Laser Technology Co.,Ltd's headquarter is located in the beautiful Suzhou city (close to Shanghai city) who is belong to the famous Sino British joint venture Suntop Group, and it's a forefront laser machines manufacturer that professional committed to the development, manufacturering and sales of the different kinds of laser equipments and provide the professional laser solutions, Since we have accumulated many years of experience in laser application equipments and most of the laser technology original from Germany, so we are one of the larget, most comprehensive, fastest-growing laser application and solutions companies in China.

We have the laser cutting department, laser welding department, laser marking department, High power CO2 laser cutting department, CNC water Jet cutting department, automation department, quality control department etc, we have more than 25 series of laser application equipments and automated facilities, including laser cutting , laser welding, laser marking, water jet cutting and the automatic laser welding machines and other kinds of metal processing machinery.

We can provide the comprehensive laser application solutions and customized laser machines for differnet industries all over the world, our representative type of customers, such as: Festo, Bosch,Valeo, Saic motor, WIKA, Wyeth, Bull, HTC, Panasonic, Siemens, NSK, SKF, Massey University, Ghahraman, Ketan, Xstrata, Pyramis,Tecna, Limitless, etc..., our laser machines exported to more than 40 countries and regions.

Suntop Laser already passed the SGS and the ISO9001:2000 quality control system, all our laser machines are produced understand this quality control system strictly, all our machines got the Europe CE and USA FDA certificate.

Suntop laser has a perfect sales and service network which has covered most of the main developed cities in China and most of the countries and regions in the world, we provide 24 hours advice and services for foreign customers.

Over the years, we take the business concepts of “Pursue innovation with technique, Guarantee quality with management, Gain applaud with services”, today we always insists quality oriented principle to cast Suntop brand and tomorrow we will become a leader with the industry elite in the laser industry of the world.
