    Laser Fabric Cutter CO2 Laser Cutting Engraving Machine , Laser Power 100W

    Ask Lasest Price
    Brand Name : Suntop Laser
    Model Number : ST-1810-100-F
    Certification : CE & ISO9001
    Price : USD5225-USD6460
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 105 sets / month
    Delivery Time : 22 work days
    • Product Details
    • Company Profile

    Laser Fabric Cutter CO2 Laser Cutting Engraving Machine , Laser Power 100W

    Laser Fabric Cutter CO2 Laser Cutting Engraving Machine , Laser Power 100W


    1. Machine's general introductions


    Our ST-1810-100 model is designed mainly for cutting the fabric , cloth , rubber, leather materials, customer can choose the fabric and cloth auto feeding system .


    Our high precision CO2 laser engraving machine with advanced and mature DSP control system, which has the function of "power off memory" and "automatic standby model" .


    Glass laser tube - fine and strong laser beam, mainly for cutting and engraving on soft materials like the cloths and fabric, machine with the fast cutting and engraving speed, this machine adopt the high precision HIWIN linear square guide, work stable & high precision, material can be delivered unlimited from front to back, aluminium flat & Strip working table, the machine has the red laser pointer for easy to find the cutting range.


    2. Application materials


    The main materials are : cloth, fabric ,Acrylic, plexiglass, PMMA, wood, plywood, MDF, marble, paper, glass, rubber, cork etc, almost for all non-metal material engraving and cutting.


    3. Application industry


    Widely used in the shoes industry, cloth industry, fabric industry, advertisement industry, Decoration industry,leather industry, shoes industry, and trademark industry etc, it's mainly used for the engraving and cutting of little artistic works. Such as engraved portraits,badges, breast cards and various engraved packages. It can also engrave seals and crabs.


    4. Machine technical specifications


    Laser power :

    100 W(optional)

    Laser tube life Span

    1500 working/hours.

    Applicable Materials

    Cloth, leather, wollens, paper, craftwork, model, Intertexture and bag etc.

    Working area:

    1800*1000 mm

    Max moving speed:

    1500mm/s

    Laser energy control:

    1-100℅ set by hand or software

    Worktable:

    Professional honeycomb table

    Locating precision:

    <0.01 mm

    Min shaping character:

    Character: 3*3 mm,; letter: 2*2 mm

    Operating temperature:

    5℃-35℃

    Resolution ratio:

    ≦4500 dpi

    Laser type:

    Hermetic CO2 glass tube

    Power supply:

    AC220±10℅50 HZ/AC110±10℅50 HZ

    Control configuration:

    DSP.

    Data transfer interface:

    USB (offline).

    USB Ports

    2

    System environment:

    WINDOWS 7/WINDOWS XP/MAC/Vista

    Cooling way:

    Water cooling and protection system

    Graphic format supported:

    The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,

    DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX).

    USER MENU

    Full English.

    Package Inclusion

    Software,VIDEO USER MENU CD,Air pump gun,Power cables, USB cables, Water tank,Water Pipe,Smoke Vent-pipe,Air Blow Pipe ,exhaust fan,Tools bag

    Memory

    64 MB

    Display screen

    LCD(SIZE 70*40 mm)

    Protection System

    Yes

    Option parts

    high-grade cooling system/double-head/cylinder rotary Jig/ irregular rotary Jig/ up&down table/ knifes table

    Guarantee

    1 year ,damageable spare parts(like laser tube,mirrors) 3 months

    Dimensions

    2180*1580*1120mm

    Dimensions(package)

    2300*1700*1300 mm

    Net Weight

    510KGs

    Gross Weight

    560KGs

    Recommended Ship way

    sea

    5. The cutting thickness data for reference ( customer can choose the corresponding power )

    Materials

    40W

    50W

    60W

    80W

    100W

    120W

    150W

    Wood

    3mm

    5mm

    7mm

    10mm

    12

    13mm

    15mm

    Playwood

    2mm

    4mm

    6mm

    10mm

    12mm

    13mm

    15mm

    Glass








    Leather

    1mm

    2mm

    3mm

    4mm

    5mm

    6mm

    7mm

    Acrylic

    2mm

    5mm

    10mm

    13mm

    15mm

    17mm

    20mm

    PVC

    1mm

    2mm

    3mm

    4mm

    5mm

    6mm

    7mm

    Plexiglass

    1mm

    2mm

    4mm

    8mm

    10mm

    12mm

    15mm

    Plastic(easy to melt)

    1mm

    1mm

    2mm

    3mm

    4mm

    5mm

    6mm

    Rubber

    2mm

    3mm

    3mm

    4mm

    5mm

    6mm

    7mm

    Crystal/Jade/Stone/Marble/medal








    Clothing(fabric,wool)

    2mm

    3mm

    3mm

    4mm

    5mm

    6mm

    8mm

    Bamboo Works

    1mm

    2mm

    3mm

    4mm

    5mm

    6mm

    7mm

    Paper

    0.5-5mm

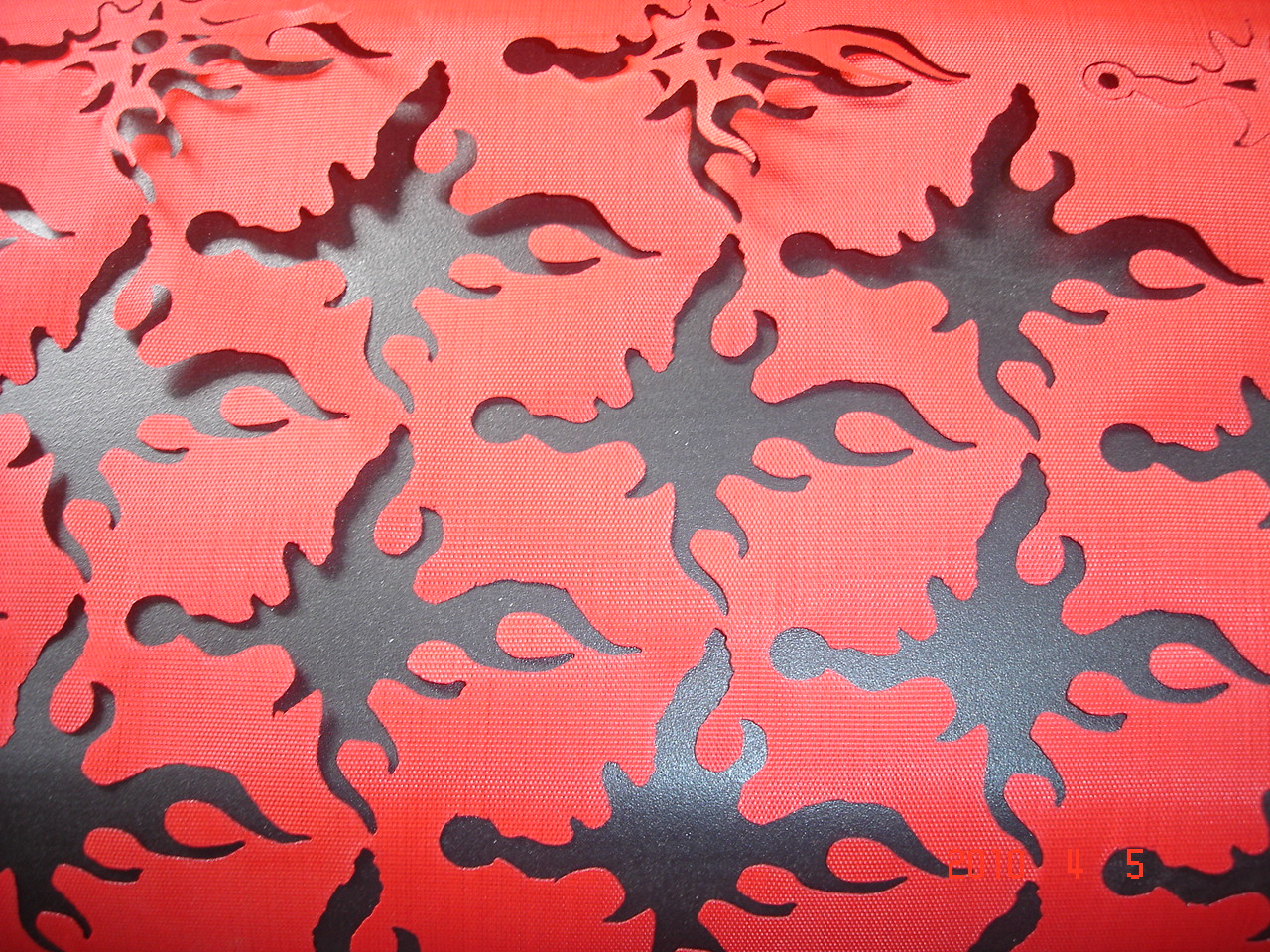

    6. Machine's real cutting and engraving samples
