    50 Watt Diode Laser Marking Machine for IC Card / Electronic Components

    Ask Lasest Price
    Brand Name : Suntop Laser
    Model Number : QY-FL50
    Certification : CE & ISO9001
    Price : USD35,100-USD42,650
    Payment Terms : T/T, Western Union
    Supply Ability : 100 sets / month
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    50 Watt Diode Laser Marking Machine for IC Card / Electronic Components

    50 Watt Diode Laser Marking Machine for IC Card / Electronic Components

    1. Machine characteristics:

    Machine with customized power 50W fiber laser source which can achieve the deep marking on metal materials, espcieal for barcode or data matrix marking,the depth can be 0.3-1.5mm ( depend on the actual materials), the marking image can not be removed in the bad environment as time pass by .


    Advantages of our fiber laser marking machine:

    Use the original Germany IPG top quality fiber laser source, no maintenance and no future wearing parts.

    The fiber laser source estimated working hours is 100,000 hours.

    Good marking quality, with fine marking line width, suitable for precise marking.

    Special Industrial PC, easy to use and stable future performance.

    Electric up and down working table, electric motor driving makes the machine more convenient to adjust focus point, Machine with He-Ne red light positioning makes operators easy to observe the laser marking range before marking.

    Adopt our own developed advanced marking software which has many customized function,i
    mported high-speed scanning galvanometer


    Maintenance free and we offer 18 months guarantee for whole machine .



    2. Applications industries:

    This 50W fiber laser marking for barcode and data matrix has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy. It is widely used in: advertising industry, arts industry, electronic components industry, medical device industry, glasses watch and clock industry, IC card industry, plastic tool industry, kitchen and bathroom appliance, etc.



    3. Applicable materials:

    It suits to mark on metal and some nonmetal materials, such as: stainless steel, brass, copper, carbon steel, aluminum, alloy, gold, silver, plastic, rubber, wood, paper, PVC, PU, Epoxy, ABS, etc.


    4. Fiber laser marking machine main technical parameters :


    Model

    QY-FL50

    Max. laser power

    50W

    Laser wavelength

    1064nm

    Beam quality

    M2<1.8

    Output stability

    2%

    Pulse width

    90-120ns

    Single pulse energy

    1mJ/20KHZ

    Min. line width

    0.01mm

    Min. character height

    0.2mm

    Repeat accuracy

    0.002mm

    Marking speed

    ≤7000mm/s

    Marking range

    200mm*200mm(Standard) Optional for others

    Cooling

    Air cooling

    Power supply

    AC220V/50HZ

    Marking deepth

    0.3-1.5mm ( the exact data depend on the actual materials )






















    5, Our advantages:

    5.1. Our machine's fiber laser source adopt the Germany IPG or China's top quality Raycus famous brand, other key optic parts we adopt the famous brand wo ensure the machine with exporting standard ( A top quality ) .

    5.2. We can customized the laser marking machine as per customer's requirements, for example to design the special fixtures, the automation system and the corresponding matching services.

    5.3. Have the professional QC team for machine quality controal, we need at least 3 days to test the machine's stability before machine shipping out,

    5.4. Recommend the machine as per customer's exact needs with the concept of Economic and practical.

    5.5. We not only provide the machine itself, but also provide the professional laser solutions at customer end.

    5.6. After sale team response customer's problems within 12 hours for oversea market, So buy our laser machines without any future worries .

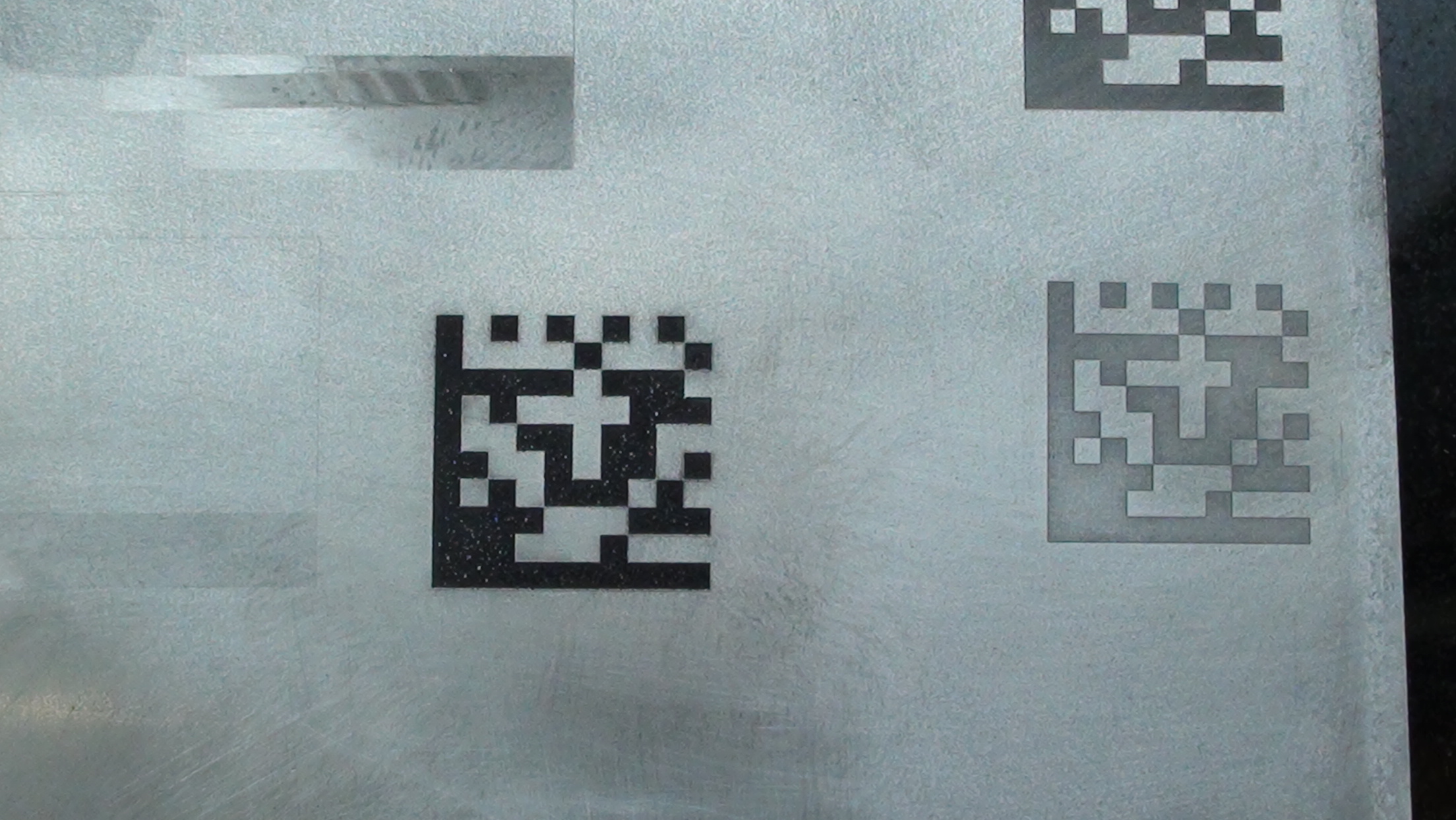

    6. The real laser marking samples for reference as follows:
