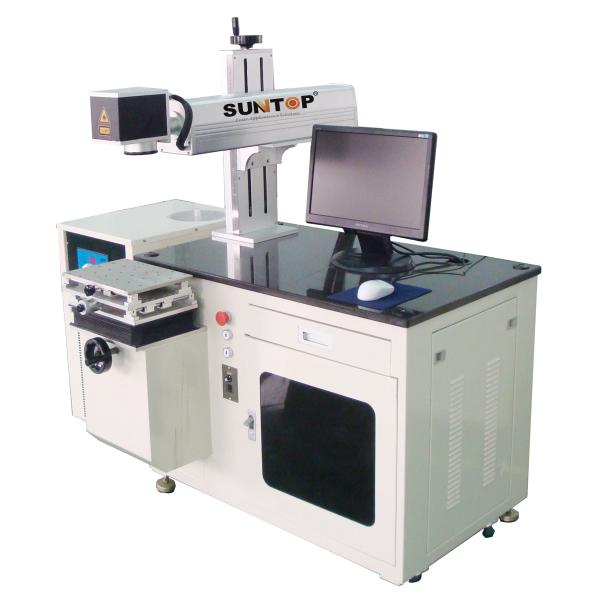

    Water Cooling 50w Diode Laser Marker For Metal Products / Barcode Marking

    Ask Lasest Price
    Brand Name : Suntop laser
    Model Number : ST-DL50
    Certification : CE & ISO9001
    Price : USD4850 - USD5920
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100 sets / months
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Water Cooling 50w Diode Laser Marker For Metal Products / Barcode Marking

    Water Cooling 50w Diode Laser Marker For Metal Products / Barcode Marking


    1. Machine's general introduction


    This kinds of diode laser marker the laser source inside key parts are imported from USA. comparing the fiber laser marker, it has the economic cost performance but the marking quality is good also, it's suitable for a small workshop and private factories to meet their daily scattered marking.


    2. Machine's main features


    ◆ Full sealed optical system, maintenance-free

    ◆ The key components used in all international brand.

    ◆ Red light positioning, electric lift, low energy consumption

    ◆ High precision marking the quality, no demming, marking white, marking black, depth marking.

    ◆Suitable for continuous assemble line work, software can data preservation, traceability and automation of movement.

    ◆ National patent optic sealed design, double rise and down working table.


    3. Application and the main materials


    Our diode laser marker can mark all metal surfaces and many non-metal materials. suitable for applications that requires high precision and accuracy in depth markings.


    Widely used in electrical components, integrated chips, electric appliance, communication equipments. tools, precision machinery, glass frames, ABS ,plastic. clocks and watches, accessories, automotive accessories, plastic buttons, construction material, packaging. pvc pipes and medical instrument processing and manufacturing.


    4. Machine's main technical specifications


    Whole machine consumption power

    1000W

    Marking scope

    F=160mm(standard)

    Laser marking speed

    7000mm/s

    Laser repeat frequency

    10KHZ-80KHZ

    Min.line wideth

    0.015mm (depend on material)

    Max.single marking depth

    ≤0.3mm (depend on material)

    Min. character

    0.1mm

    Laser output power

    50W (75W or 100W are optional)

    Modulate frequency

    200HZ-50KHZ

    Laser wavelengh

    1064nm

    Current adjustment scope

    0-25A

    Cooling way

    Water cooling

    Input voltage

    220V/50-60HZ


    5. Machine's main configurations


    Model

    ST-DL50

    Galvanometer(Scanner)

    SGS

    AO Q-SWITH

    U.K- Gooch Housego

    Laser crystal

    Original:∮3

    Cooling system

    SUNRISE,Temperature distinguish rate ±0.1°

    Expander lens

    Germany

    Reflect lens

    Germany

    Q-Switch power supply

    STARS

    Computer

    special industrial PC, Color LCD.

    Software

    JCZ

    AD/DA

    JCZ

    Laser source ( optical key parts )

    American

    Power of laser

    50W


    6. The laser marking samples of this kinds of diode laser marker
