    75 watt diode laser marking machine for Steel and Aluminum , Metal Laser Marking

    Ask Lasest Price
    Brand Name : Suntop laser
    Model Number : ST-DL75-D
    Certification : CE & ISO9001
    Price : USD7450 - USD7920
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 115 sets / months
    Delivery Time : 15-19 work days
    • Product Details
    • Company Profile

    75 watt diode laser marking machine for Steel and Aluminum , Metal Laser Marking

    75 watt diode laser marking machine for Steel and Aluminum , Metal Laser Marking


    1. Machine's general introduction


    This kinds of diode laser marker the laser source inside key parts are imported from USA. comparing the fiber laser marker, it has the economic cost performance but the marking quality is good also, it's suitable for a small workshop and private factories to meet their daily scattered marking.


    This machine's laser beam is thin and with high strong peak power, so it can mark the metal products with good depth, it suitable for the steel industry which need the deep marking .


    2. Machine's main features


    This customzied diode laser marking with full sealed optical system, maintenance-free, the key components used in all international brand,the machine has the red light positioning, electric lift, low energy consumption ,high precision marking the quality, no demming, marking white, marking black, depth marking, it's suitable for continuous assemble line work, software can data preservation, traceability and automation of movement, national patent optic sealed design, double rise and down working table.


    3. Application and the main materials


    Our 75W diode laser marking machine can mark all metal surfaces and many non-metal materials. suitable for applications that requires high precision and accuracy in depth markings.


    it's widely used in electrical components, integrated chips, electric appliance, communication equipments. tools, precision machinery, glass frames, ABS ,plastic. clocks and watches, accessories, automotive accessories, plastic buttons, construction material, packaging. pvc pipes and medical instrument processing and manufacturing.


    4. The machine's main technical specifications


    The total consumption power

    1100W

    Marking scope

    F=160mm(standard)

    Laser marking speed

    7000mm/s

    Laser repeat frequency

    10KHZ-80KHZ

    Min.line wideth

    0.015mm (depend on material)

    Max.single marking depth

    ≤0.3mm (depend on material)

    Min. character

    0.1mm

    Laser output power

    50W (75W or 100W are optional)

    Modulate frequency

    200HZ-50KHZ

    Laser wavelengh

    1064nm

    Current adjustment scope

    0-25A

    Cooling way

    Water cooling

    Input voltage

    220V/50-60HZ


    5. Machine's main configurations


    Model

    ST-DL75-D

    Galvanometer(Scanner)

    SGS

    AO Q-SWITH

    U.K- Gooch Housego

    Laser crystal

    Original:∮3

    Cooling system

    SUNRISE,Temperature distinguish rate ±0.1°

    Expander lens

    Germany

    Reflect lens

    Germany

    Q-Switch power supply

    STARS

    Computer

    special industrial PC, Color LCD.

    Software

    JCZ

    AD/DA

    JCZ

    Laser source ( optical key parts )

    American

    Power of laser

    75W

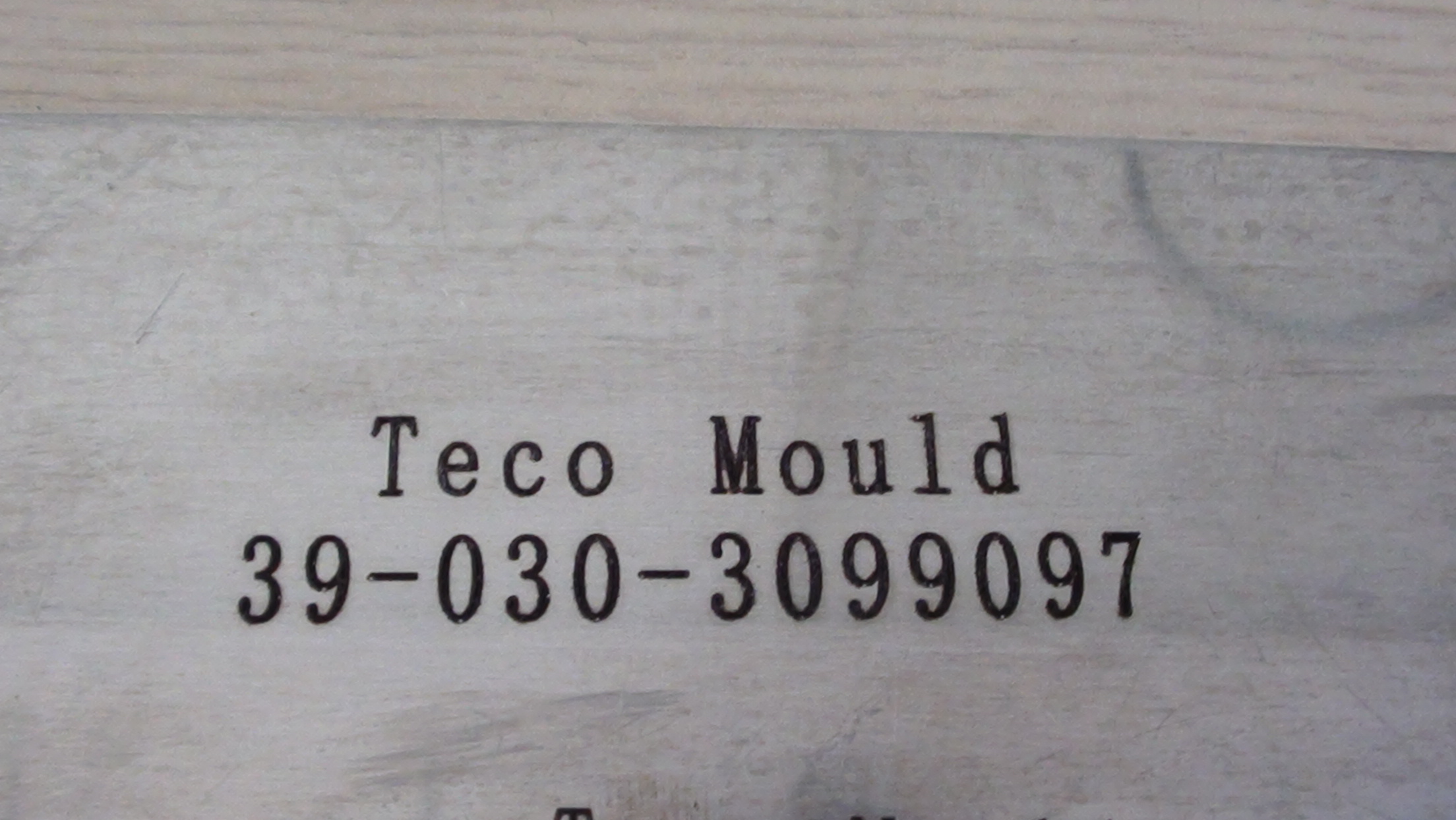

    6. The laser marking samples of this kinds of diode laser marker
