500W CNC Industrial Laser Cutter For Steel and Alumnium , Adjusted Through Z axis ( upgrade

new model in 2015 )


1. Machine general introduction

QY-FC2513 500W CNC laser cutting equipment is achieved by powerful laser focused on object to cause instant melting and evaporation, with original fiber laser source RAYCUS or USA, automatic cutting is controlled by digitalized mechanic system, this machine has condensed the technologies of laser, digital, and precise mechanics.

Our CNC fiber laser cutting equipment can cut Aluminum thickness up to 2mm, but the machine's price cheaper than the other kinds of fiber laser source, so this kinds of fiber laser cutting with high cost performance,

The laser cutting head can be adjusted through the Z axis; travelling area from 0-100mm, the laser cutting head has the automatic tracking functions which can agree with the metal wave surface.

This machine's other key optic parts are imported from Germany or USA , it’s the China’s price, but European quality, use the gantry working table and the whole steel welding structure which make the machine very stable movement and almost no distortion. .

2. The machine’s main technical parameters

3. Machine’s main configurations

4. The spare parts free provided from supplier with the machine together.

※ Protection lens 2 pieces
※ Nozzle 2 pieces
※ Allen wrench 1 set
※ Cleaning paper 1 set
※ User menu 1 set

5. Installation and commissioning

The service from the seller:
1. Dispatch the qualified technicians;
2. Supervision of customer’s personnel for:
a) Supply of labors, carnages and insureance to unload machine and assist the installation work under the instruction of seller’s supervisor.
b) Positioning the machine
c) Connecting the cables and hoses to the machine
d) Prepare the installation
3. The buyer’s responsibility
a) An air compressor (mainly for pneumatic movements)
b) A bottle of liquid oxygen (the purity more than 99.99%)
d) Power: 380V 50HZ 3 phase (with a 30KW regulator)
e) Gases, air and electrical supplies are available for the connection to the machine at the nominated points.
f) Buyer is to ensure the site is clear prior to commencement of installation, adjusting and training.
g) Supply the metal sheet for commissioning testing, machine alignment and training.
h) Equipment installation location must be clean, no vibration


6. The training contents

The buyer should be arrange one or two engineer who know the basic knowledge of computer and the software to accept the training, the training will comprise of the following:
6.1. Introduce the machine’s each part’s name and the main functions.
6.2. The machine’s running theory.
6.3. Control features and the operation.
6.4. Machine maintenance and the adjustment.
6.5. Machine’s software each functions and parameters setting.
6.6. Machine’s troubleshooting and the solutions.


7. Our special Services
7.1. Before sale: buyer inform their main cutting requirements, for example the metal type, thickness and their daily capacity, then we will recommend the suitable laser cutting machine;
7.2. After confirmed the laser model, buyer can send their materials for testing if they want, or we can record the cutting demo short video and the cutting samples pictures to send to the buyer by email.
7.3. If buyer wants to come to seller’s factory to see the machine’s performance, seller will pick them up from the Shanghai Pu Dong airport by car and reserve the hotel for buyer at the same time if they need.


8. Our company mission

8.1. To provide the laser machines with European quality and China prices;
8.2. To provide the professional laser solutions to every oversea customers, not only the machine itself;
8.3. We have a strong service team who can provide the prompt after sale services to oversea customers within 12 hours.

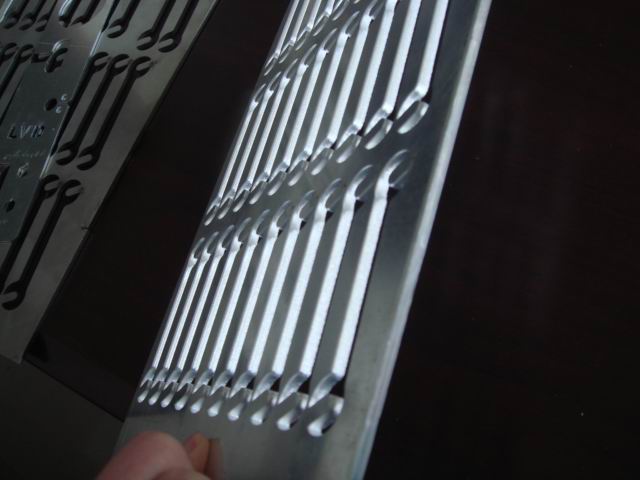

9. The laser cutting samples:

Suntop Laser Technology Co.,Ltd's headquarter is located in the beautiful Suzhou city (close to Shanghai city) who is belong to the famous Sino British joint venture Suntop Group, and it's a forefront laser machines manufacturer that professional committed to the development, manufacturering and sales of the different kinds of laser equipments and provide the professional laser solutions, Since we have accumulated many years of experience in laser application equipments and most of the laser technology original from Germany, so we are one of the larget, most comprehensive, fastest-growing laser application and solutions companies in China.

We have the laser cutting department, laser welding department, laser marking department, High power CO2 laser cutting department, CNC water Jet cutting department, automation department, quality control department etc, we have more than 25 series of laser application equipments and automated facilities, including laser cutting , laser welding, laser marking, water jet cutting and the automatic laser welding machines and other kinds of metal processing machinery.

We can provide the comprehensive laser application solutions and customized laser machines for differnet industries all over the world, our representative type of customers, such as: Festo, Bosch,Valeo, Saic motor, WIKA, Wyeth, Bull, HTC, Panasonic, Siemens, NSK, SKF, Massey University, Ghahraman, Ketan, Xstrata, Pyramis,Tecna, Limitless, etc..., our laser machines exported to more than 40 countries and regions.

Suntop Laser already passed the SGS and the ISO9001:2000 quality control system, all our laser machines are produced understand this quality control system strictly, all our machines got the Europe CE and USA FDA certificate.

Suntop laser has a perfect sales and service network which has covered most of the main developed cities in China and most of the countries and regions in the world, we provide 24 hours advice and services for foreign customers.

Over the years, we take the business concepts of “Pursue innovation with technique, Guarantee quality with management, Gain applaud with services”, today we always insists quality oriented principle to cast Suntop brand and tomorrow we will become a leader with the industry elite in the laser industry of the world.
